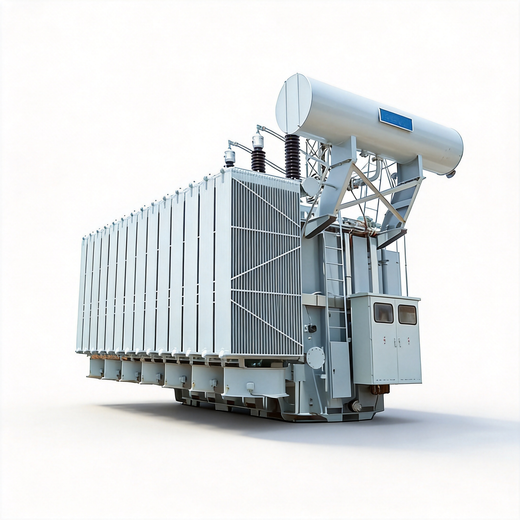

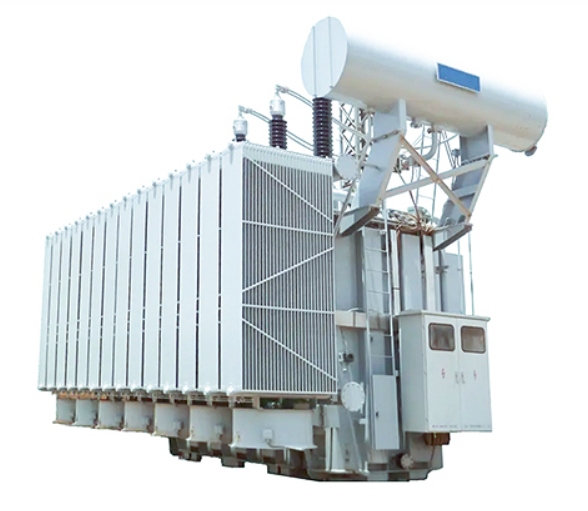

Power Transformer
Transformer | Ultra-High Voltage Transformer
$35,000.00
Buy individually:
Group price applies when the group is complete
Overview
Designed for high-voltage power transmission and distribution and large-scale power projects, featuring optimized core, coil, body, and lead wire designs to balance low loss, low partial discharge, low noise, and operational reliability.
Power plants, substations, large industrial enterprises, petrochemical projects, power infrastructure, energy projects
① High voltage adaptability: Suitable for large-scale power transmission and distribution and power infrastructure;
② Low loss design: Optimized structure and materials to reduce operating energy consumption;
③ High reliability: Verified through short-circuit withstand capability and relevant type tests, suitable for large-scale engineering projects.
Approximately $350,000–$650,000+ Specific pricing will be quoted individually for each project.
Reliable Power. Built to Last.

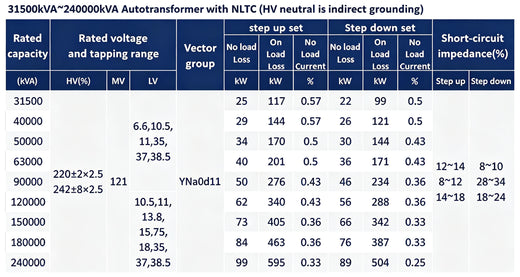

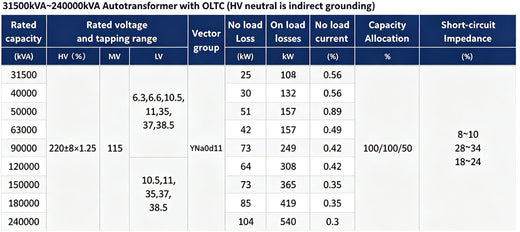

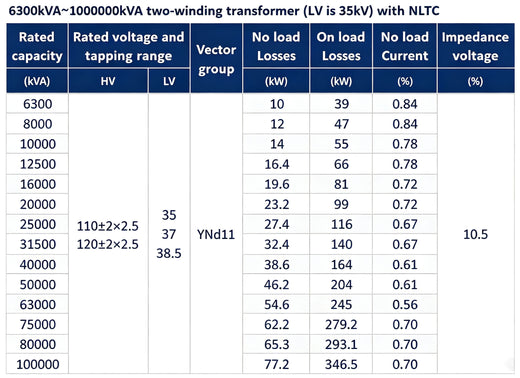

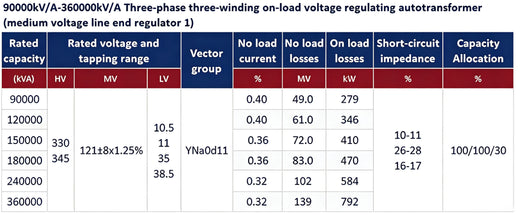

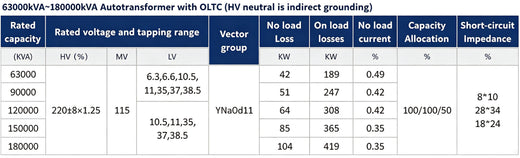

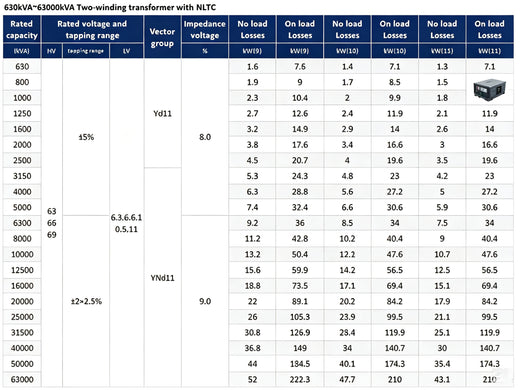

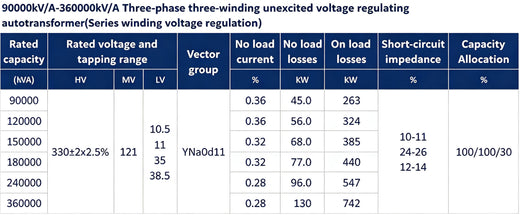

Specifications
These specifications are for comparison; confirm the supplied configuration before ordering. Items marked * or ≈ are unverified estimates, not confirmed specifications for this model. Follow the supplied model’s rating label and manual for voltage, protection and cleaning requirements.
| Product type | High-voltage power transformer |
|---|---|
| Rated capacity | 50–240 MVA (Project-specific) |
| Phase / frequency | Three-phase / 50 / 60 Hz |
| Voltage conversion | 110 / 220 kV High-voltage side |
| Cooling method | ONAN/ONAF/ODAF Oil-immersed * |
|---|---|
| Insulation class | A class * |
| Impedance voltage | 10–14 % * |
| Ingress protection | Outdoor substation * |
| Reference dimensions (mm) | Project-specific design * |
| Reference shipping weight (not net weight) | Project-specific (Tens to hundreds of tonnes) * |
